Product parameters
Name: HRC50 ° 2 Flute hardened tungsten steel Ball Nose End Mill
Spiral angle: 35 ° Coating: ALTin
Blade number: 2 Flute HRC: 50°
Applicable machine tools: CNC machining center, engraving machine, high-speed machine, etc.
Materials used: mould steel, tool steel, l, carbon steel, Thermal treatment quenching, etc
Main features: Germany Walter five-axis grinding machine, large core diameter design, chip removal smooth, enhance tool rigidity, easy angle; use fine grain grinding wheel processing, reduce surface grinding wheel trace, coating treatment more uniform, longer service life.
| Number | Model | R | D | L1 | L |
| 1 | R0.5x3x50L | 0.5 | 4 | 3 | 50 |
| 2 | R0.75x4x50L | 0.75 | 4 | 4 | 50 |
| 3 | R1.0x6x50L | 1 | 4 | 6 | 50 |
| 4 | R1.25x7x50L | 1.25 | 4 | 7 | 50 |
| 5 | R1.5x8x50L | 1.5 | 4 | 8 | 50 |
| 6 | R1.75x9x50L | 1.75 | 4 | 9 | 50 |
| 7 | R2.0x10x50L | 2 | 4 | 10 | 50 |
| 8 | R2.5x12x50L | 2.5 | 6 | 12 | 50 |
| 9 | R3.0x15x50L | 3 | 6 | 15 | 50 |
| 10 | R4.0x20x60L | 4 | 8 | 20 | 60 |
| 11 | R5.0x25x75L | 5 | 10 | 25 | 75 |
| 12 | R6.0x30x75L | 6 | 12 | 30 | 75 |
| 13 | R8.0x30x100L | 8 | 16 | 30 | 100 |
| 14 | R10.0x30x100L | 10 | 20 | 30 | 100 |

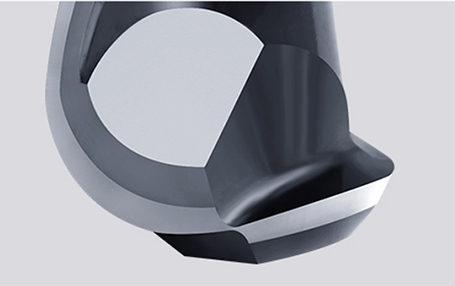

01 Front angle
Negative front angle design
Adopt the suitable negative front angle design, and give consi deration to the edge strength and sharpness. At the same time, the large core diameter is used to enhance the tool rigidity and make the cutting and chip removal stable.
02 Edge belt
Double edge belt design
Double-edge with 35 °helical angle design, making milling cutter more wear-resistant, less product burrs and not easy to stick to the Milling cutter.
03 Chip removal
Big discharge chip space
Large capacity chip discharge has strong cutting characteristics, cutting timely discharge(draining), can achieve high efficiency machining.

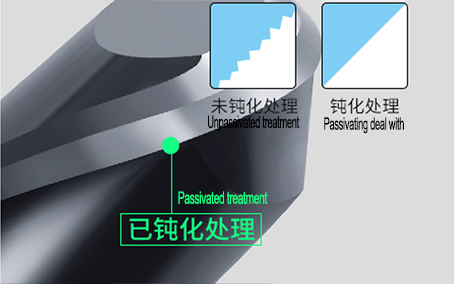

04 Passivated
Passivating deal with
The edge is passivated, magnifying 200 times without slight defect, processing is not easy to have burrs, not easy to crack; the edge is not passivated, the edge is easy to crack, collapse phenomenon. the edge isn't flat.
05 Angle of chamfer
Chamfer easy to operate
Handle chamfering layout is easier to fit
Conventional cutting parameters
| Cutting material | Carbon steel | Carbon steel | Alloy steel,tool steel | Alloy steel,tool steel | Alloy steel,tool steel | Alloy steel,tool steel | Heat-resitant steeland alloy heat-resistant | Heat-resitant steeland alloy heat-resistant | Heat-resitant steeland alloy heat-resistant | Heat-resitant steeland alloy heat-resistant |
| Cuting hardness | Under 30(HRC) | Under 30(HRC) | 30-35(HRC) | 30-35(HRC) | 35-40(HRC) | 35-40(HRC) | 40-45(HRC) | 40-45(HRC) | 45-55(HRC) | 45-55(HRC) |
| Edge diameter | Rotation rate | Feed | Rotation rate | Feed | Rotation rate | Feed | Rotation rate | Feed | Rotation rate | Feed |
| 1 | 16000 | 120 | 9500 | 75 | 7600 | 70 | 5700 | 66 | 3200 | 24 |
| 2 | 9500 | 160 | 5700 | 105 | 4500 | 95 | 3300 | 82 | 1900 | 35 |
| 3 | 7400 | 220 | 4500 | 140 | 3600 | 125 | 2600 | 110 | 1500 | 46 |
| 4 | 6400 | 300 | 3800 | 180 | 3000 | 1160 | 2200 | 150 | 1270 | 60 |
| 5 | 5700 | 370 | 3400 | 220 | 2700 | 220 | 2000 | 180 | 1150 | 75 |
| 6 | 5300 | 480 | 3200 | 290 | 2500 | 260 | 1900 | 220 | 800 | 96 |
| 8 | 4000 | 480 | 2400 | 290 | 1900 | 260 | 1400 | 220 | 800 | 96 |
| 10 | 3200 | 480 | 1900 | 290 | 1500 | 250 | 1100 | 210 | 640 | 93 |
| 12 | 2600 | 460 | 1600 | 280 | 1130 | 250 | 950 | 210 | 530 | 93 |
| 16 | 2000 | 360 | 1200 | 220 | 950 | 200 | 710 | 170 | 400 | 72 |
| 20 | 1600 | 290 | 950 | 170 | 760 | 1150 | 570 | 570 | 135 | 57 |
